Application
Blast furnace shut off valve is applicable for shutting off of gases in furnace gas cleaning system and crude coal gas cleaning system of metallurgical industry. It is also applicable for shutting off other gases containing dust.

Features

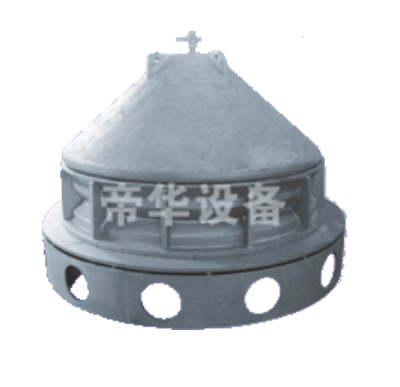

Blast furnace shut off valve with single bell is made up of valve seat, conical valve plug, draw bar, rope and wheel. The opening and closing of the blast furnace shut off valve is controlled by hoisting equipment.
The sealing surface of blast furnace shut off valve is sprayed and welded powdery alloy materials. The blast furnace shut off valve with single bell has good wear resistance, sealing effect, stable performance and long service life.

Technical Parameters
Working temperature: ≤450 ℃
Material of valve: Carbon steel
Applicable medium: coal gas, gas containing dust
Operating pressure: ≤0.4MPa

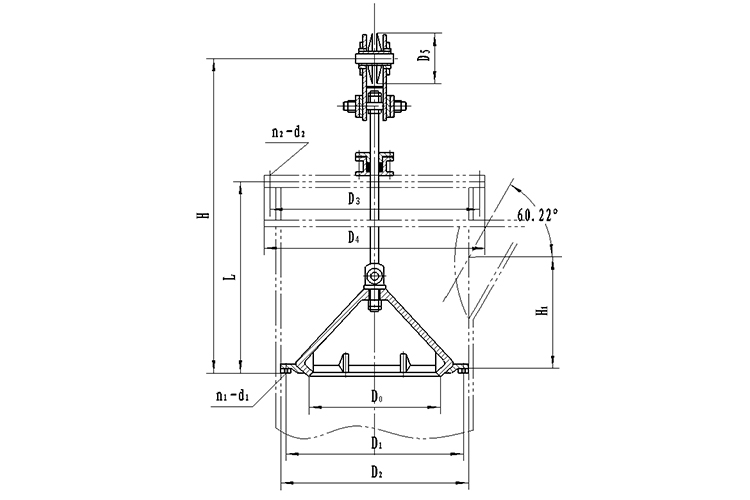

J9Y48PH-3 blast furnace shut off valve (single bell)

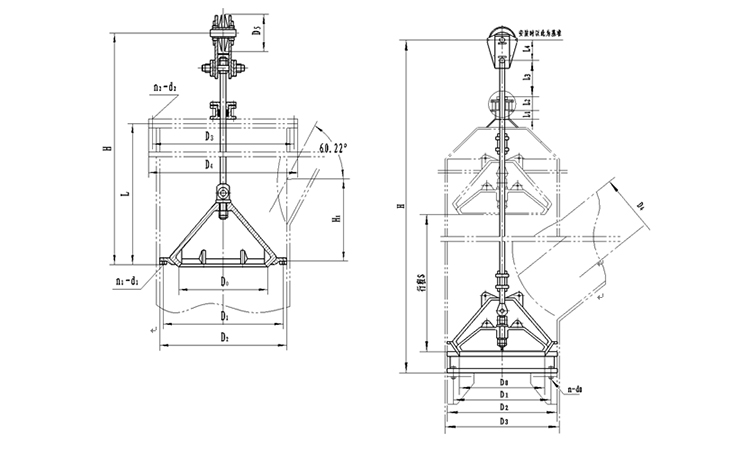

J9Y48PH-S Blast furnace shut off valve (double bell)

Features
Blast furnace shut off valve with double bell is made up of valve seat, upper and lower conical valve plugs, draw bar, rope and wheel. The opening and closing of the blast furnace shut off valve is controlled by hoisting equipment.
The sealing surface of blast furnace shut off valve is sprayed and welded powdery alloy materials. The blast furnace shut off valve with double bell is characterized by good wear resistance, sealing effect, stable performance and long service life.
